Spray gun cleaners

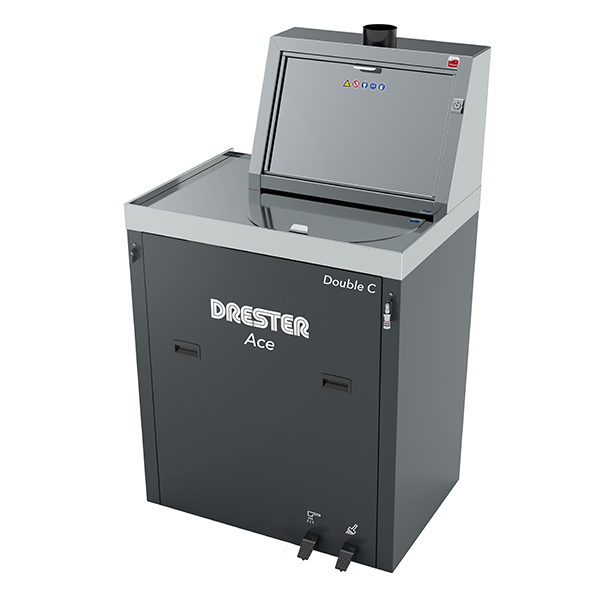

RDG2C / RDI2C Ace Double Combo

Drester

Description

FOR WATER AND SOLVENT BASED PAINTS
The ACE double combo is designed to clean solvent and aqua spray guns. The ACE gun Cleaner incorporates the all-new Automatic Wash Box, which provides a compact automatic cleaning area, supplied by pump fed recirculating solvent and a manual clean rinse spray. The compact size of the Automatic Wash Box means that manual cleaning of waterborne spray guns can also take place in the manual workstation at the same time, as solvent guns are being cleaned. The unit is equipped with a flow through brush to clean the externals of the spray gun and a paint channel flush gun for the internal surfaces. The unit is also supplied with a blowgun to dry off the spray guns after cleaning and a spray out facility. The waterside of the machine is equipped with our well-tested water recovery system that allows the water or Aquasolve to be
recycled using a flocculating powder and filters so that it can be reused and disposed of at lower cost. As with most our spray gun cleaners, it is foot operated of which gives hands free capability while handling expensive spray guns.

  • Automatic washing station, using re-circulating solvent and manual clean rinse
  • Sink for manual cleaning of waterborne paints is equipped with a flow-through brush and clean rinse nozzle
  • Using recycled water and a paint channel rinse gun using clean water
  • The Double C comes equipped with a pneumatic extractor
  • Ex II 2 G EEx c IIA T6
  • The Double C can be ordered with stainless cabinet (RDI2C)
  • Air Purge Line (keeps solvent away from the airside of the gun while being cleaned)
  • Approved by major spray gun
  • Extraction capture at source
  • - All Redashe spray gun cleaner pumps carry a lifetime guarantee against faulty materials and workmanship, this guarantee does not apply to fair wear and tear or damage caused by misuse or abuse of the product. Warranty limited to the original purchaser.

Air supply 7-12bar (110 - 180psi), 250l/min (9cfm)
Extraction capacity 1400m3/hour (82cfm) (with a 10m extension) this increases the shorter the run
Overall dimensions Height: 1488 mm (58,58"), Width: 840 mm (33.07") Max depth: 675 mm (26,-70"), Depth at the floor: 621mm (26.7")
Extractor diameter 100mm (4")
Weight 80kg (176lb)
Sound pressure level <70db (A)
Pump capacity 10
Solvent pressure 2bar/30psi
